Dimensions

Technical Dimension for All Hanalei fins

All of the dimensions for the extensive range of fins are gathered on this page to simplify comparisons of various fins.

The dimensions will be presented as a table that makes it easier to compare fins. It will start with a subset of fins and expand over time.

Q5 Dimensions

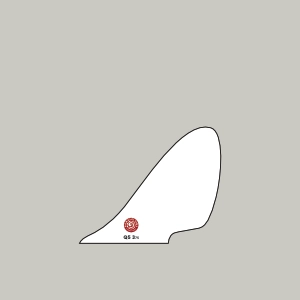

Q5-375

Q5-375 Twin

Height:

3.75" / 95mm

Base:

2.875" / 73mm

Area:

7.94in2 / 51cm2

Q5-375C

Q5-375C Center

Height:

3.75" / 95mm

Base:

2.875" / 73mm

Area:

7.94in2 / 51cm2

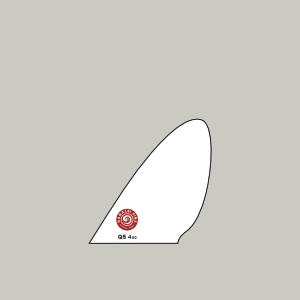

Q5-400

Q5-450 Twin

Height:

4.00" / 102mm

Base:

2.875" / 73mm

Area:

9.51in2 / 61cm2

Q2 Dimensions

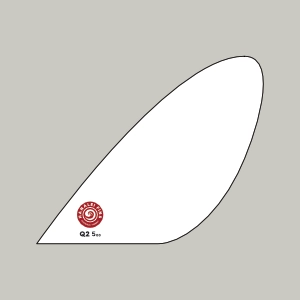

Q2-500

Q2-500 Twin

Height:

5.00" / 127mm

Base:

2.875" / 73mm

Area:

15.78in2 / 102cm2

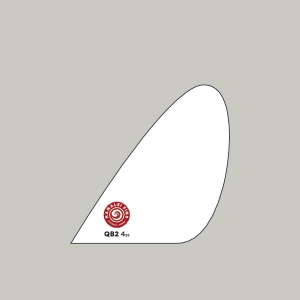

QB2-425

QB2-425 Twin

Height:

4.25" / 108mm

Base:

2.875" / 73mm

Area:

10.62in2 / 69cm2

QFT Dimensions

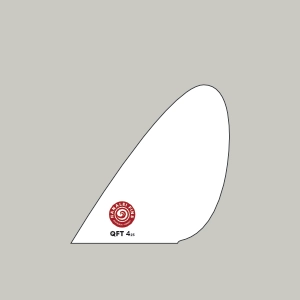

QFT-425

QFT-425 Twin

Height:

4.25" / 108mm

Base:

2.875" / 73mm

Area:

10.55in2 / 68cm2

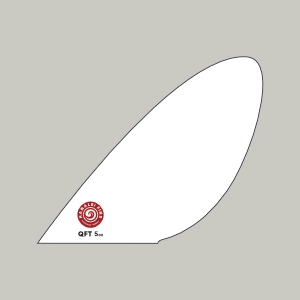

QFT-500

QFT-500 Twin

Height:

5.00" / 127mm

Base:

2.875" / 73mm

Area:

15.68in2 / 101cm2

F8 Dimensions

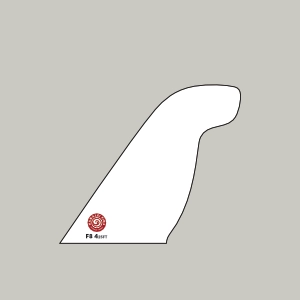

F8-425FT

F8-425FT Twin

Height:

4.25" / 108mm

Base:

2.875" / 73mm

Area:

9.28in2 / 60cm2

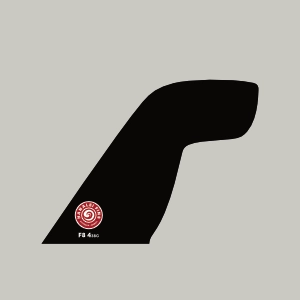

F8-438C

F8-438C Center

Height:

4.25" / 108mm

Base:

2.875" / 73mm

Area:

9.28in2 / 60cm2

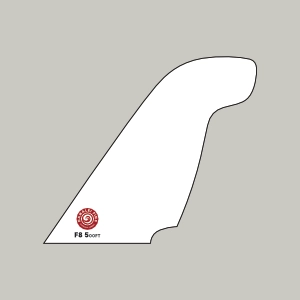

F8-500FT

F8-500FT Twin

Height:

4.375" / 111mm

Base:

2.875" / 73mm

Area:

11.71in2 / 74cm2

XT2 Dimensions

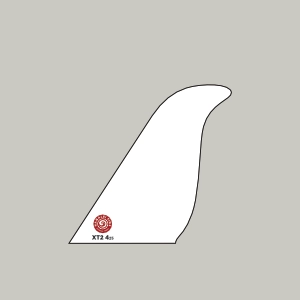

XT2-425

XT2-425 Twin

Height:

4.25" / 108mm

Base:

2.875" / 73mm

Area:

8.59in2 / 55cm2

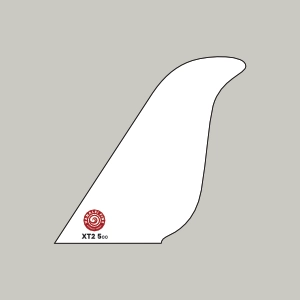

XT2-500

XT2-500 Twin

Height:

5.00" / 127mm

Base:

2.875" / 73mm

Area:

11.08in2 / 72cm2

A4C Dimensions

A4C-550

A4C-550 Twin

Height:

5.50" / 140mm

Base:

2.875" / 73mm

Area:

15.55in2 / 100cm2

A4C-500CK

A4C-500CK Center

Height:

5.00" / 127mm

Base:

2.875" / 73mm

Area:

13.93in2 / 89cm2

A4C-500

A4C-500 Twin

Height:

5.00" / 127mm

Base:

2.875" / 73mm

Area:

14.64in2 / 94cm2

A4C BW Dimensions

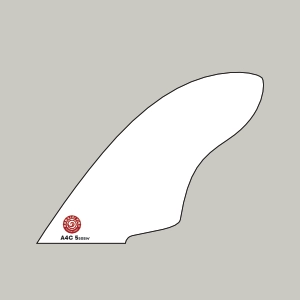

A4C-550BW

A4C-550BW Twin

Height:

5.50" / 140mm

Base:

2.875" / 73mm

Area:

15.55in2 / 100cm2

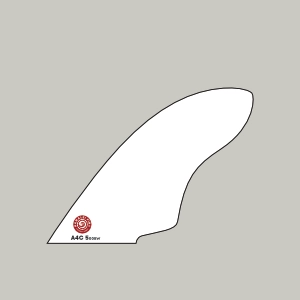

A4C-500BW

A4C-500BW Twin

Height:

5.00" / 127mm

Base:

2.875" / 73mm

Area:

14.64in2 / 94cm2

K9/PWR Dimensions

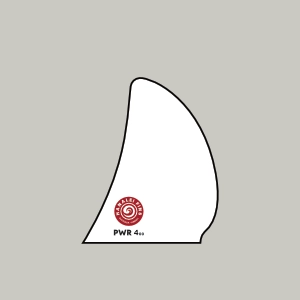

PWR-400

PWR-400 Twin

Height:

4.00" / 102mm

Base:

2.875" / 73mm

Area:

8.00in2 / 52cm2

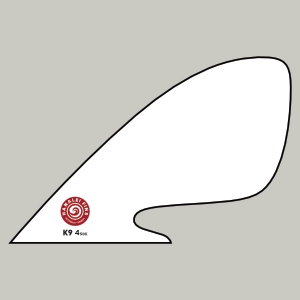

K9-450K

K9-450K Twin

Height:

4.50" / 114mm

Base:

3.9375" / 100mm

Area:

15.59in2 / 101cm2

WS2 Dimensions

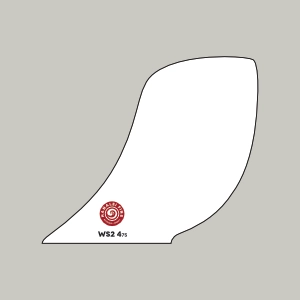

WS2-475

WS2-475 Twin

Height:

4.75" / 121mm

Base:

3.50" / 89mm

Area:

15.12in2 / 89cm2

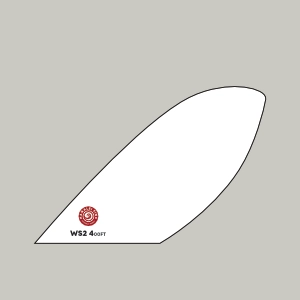

WS2-400FT

WS2-400FT Twin

Height:

4.00" / 102mm

Base:

3.25" / 83mm

Area:

11.84in2 / 76cm2

MISC Dimensions

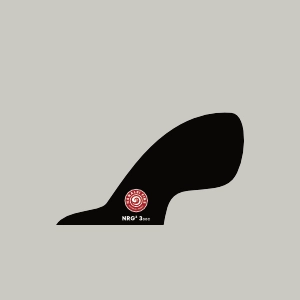

NRG2-300C

NRG2-300C Center

Height:

3.00" / 76mm

Base:

2.875" / 73mm

Area:

5.81in2 / 38cm2

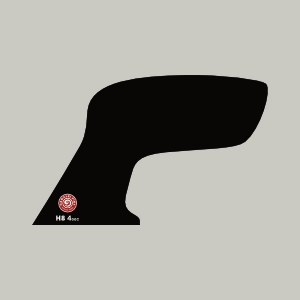

H8-400C

H8-400C Center

Height:

4.00" / 102mm

Base:

2.875" / 73mm

Area:

11.49in2 / 74cm2

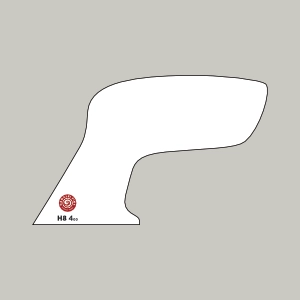

H8-400

H8-400 Twin

Height:

4.00" / 102mm

Base:

2.875" / 73mm

Area:

11.49in2 / 74cm2
